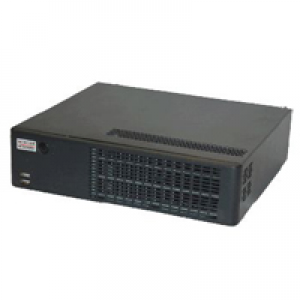

Wincor Nixdorf BEETLE /X plus POS systems

Code: BEETLE X plus

Price: Call

Wincor Nixdorf BEETLE /X plus POS systems

The innovative evolution of Wincor Nixdorf’s tried-and-tested BEETLE /X series. Designed for longevity and low operating costs this model will definitely contribute to further cutting the IT expenditure of a POS system.

Retailing, like many other industry sectors, is under enormous cost pressure and is permanently seeking new ways of reducing costs especially for the IT services and power consumption.

Key features:

Powerful, energy-efficient Intel Dual Core Atom processor technology
Sealed and fanless system unit leads to highest availability
Multi-modular system design simplifies swap service
Silent operation
Flexible POS I/O concept with various powered interfaces
Ideal for retailers looking for a TCO optimized POS system

Hightlight:

Powerful and energy-efficient Intel Dual Core Atom processor technology
Separate, energy-efficient 80PLUS Gold power supply
Comprehensive selection of interfaces
Flash memory technology (SSD)
Optimized for swap service
Preinstalled Management Agent BEETLEINFO
Sealed, fanless system design – no moving parts

Processor
Intel Atom D2560
Main Memory
1 GB - 4 GB
Interfaces
RS232 (standard / powered)	1 / 3
USB 2.0 (hinten/vorne)	4 / 2
USB powered 12V:	6
USB powered 24V:	1
Displays	DVI-I / DP
LAN (MBit/s)	10/100/1000
Cash drawer 24V	1
Audio	mic, spk, line In
Keyboard / mouse (PS/2)	1 PS/2
PowerSave Interface	1
I/O Expansion
PCI or PCIe slot	1
Additional RS232 ports	2 / 4
Panellink display interface	1
Storage media
Solid state disk (SSD) oder 2.5” hard disk
Options
80PLUS GOLD power supply
System Management
Desktop Management Interface (DMI)
Preboot Execution Environment (PXE)
Wake on LAN (WoL)
Advanced Configuration and Power Interface (ACPI)
Management Agents (BEETLEINFO)
Dimensions (W x D x H in mm)
288 x 265 x 78
Operating systems
Windows XP Professional
Windows 7
Windows POSReady 2009
Windows POSReady 7
WNLPOS (Linux)
