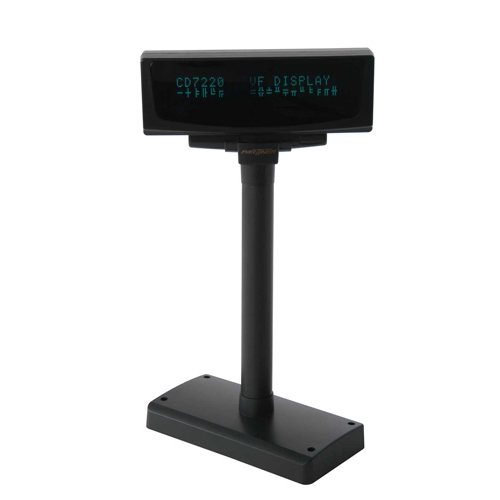

Pos Display Customer CD-7220

Code: CD-7220
Provider: Other
The CD-7220 customer pole display uses a vacuum fluorescent display (VFD) tube presenting bright and easy to read characters. Because of the VFD technology, the display is viewable from a wide angle.
Price: Call

The CD-7220 customer pole display uses a vacuum fluorescent display (VFD) tube presenting bright and easy to read characters. Because of the VFD technology, the display is viewable from a wide angle. Customers will appreciate not having to remain in a fixed viewing position to see the display.
The CD-7220 customer pole display has two pole sections giving you the choice of four different display heights. The display can be rotated up to 270 degrees. The head of the display can tilt up to 35 degrees maximum. The combination of these features gives you the flexibility to tailor the display position to your unique application. The CD-7220D provides Dual independent displays. You can choose to show the same or different messages with a single pole display. With two lines of twenty characters on each side, the CD-7220D can display 96 alphanumeric messages with 13 partners characters. Additionally, a software utility is provided to transfer character dot patterns to ASCII code giving you the ability to define characters and demo messages to download to the display EPROM.


The CD-7220 customer pole display uses an easy to connect RS-232C serial port connection with a wide range of available communication speeds from 4800 to 38,400 bps. The CD-7220 pass-through function allows you to connect another serial device by sharing one single serial port on the host system. The CD-7220 also offers a variety of emulation modes including Epson, Aedex, Emax and Ultimate.

Model CD-7220 Flexible Configuration for Maximum Effectiveness!
Display Method Vacuum fluorescent
Display Color Blue Green
Brightness 700 cd/m2
Interface RS-232 Serial (D-Sub 9 pin) with pass through function*
Power Supply 12VDC +/- 5% (5V optional)
Power Consumption 5 Watts 8 Watts
Safety FCC Class B, CE Class B, EMC Approved
MTBF 25,000 hours
Weight 2 lb (.9 kg)
Viewable Angle +/- 15 degress
Rotation Angle Maximum 270 degrees
Character Font 5 x 7 dot matrix, comma and decimal point
Character Size 9.0 mm x 5.25 mm
Character Pitch 8.3 mm
Character Type 96 alphanumeric, 13 partners sets and one custom
Number of Characters 40 (20 columns x 2 lines) 40 (20 columns x 2 lines) x 2 sides
Notes * Standard Base includes a 9-Pin serial port. Small metal base would require an additional cable to provide this passthrough function
